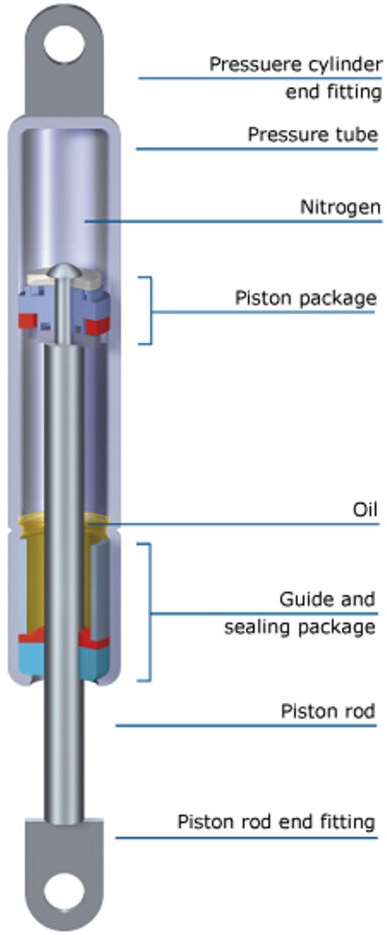

LIFT-O-MAT – gas spring with hydraulic damping
LIFT-O-MAT gas springs with hydraulic motion damping make an appearance anywhere hinged or rotating motion needs to be securely retained at its end position.
Products in this line protect materials by preventing the full weight of the application from acting on the hinges and joints. Component travel is altogether more harmonious and easier to control as well.

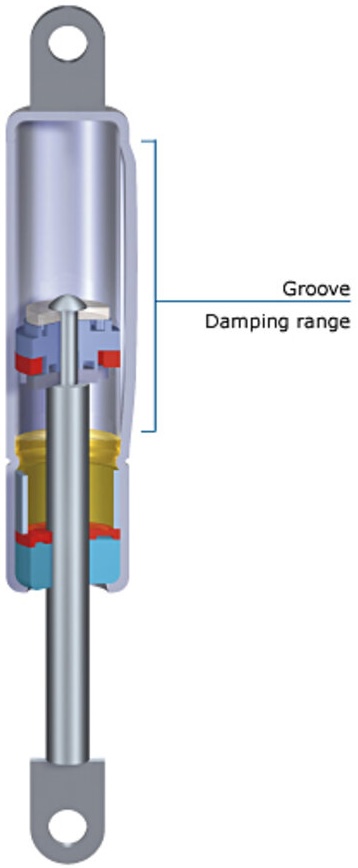

LIFT-O-MAT with dynamic damping
In this model, damping takes place not with the help of hydraulic oil, but rather with the “groove-in-the-tube” technology developed by Stabilus.
Its big advantage is that it enables damping specifications to be adapted to the application. For instance, the spring can be effective only during extension, only during compression, or in both directions. This makes it the ideal solution for any application in which the gas spring’s mounting orientation is not always distinct.

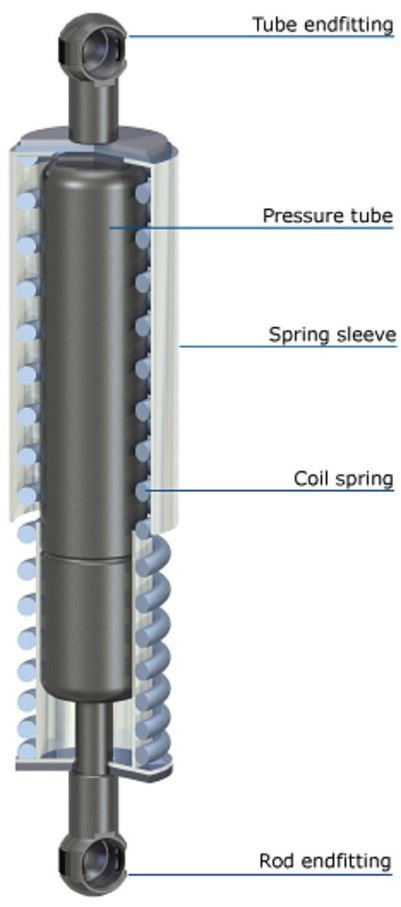

LIFT-O-MAT – Gas spring with strut
One factor that affects the force required to operate a panel is the ambient temperature.
In cold weather, the panel might lose its ability to stay open securely. High temperatures, on the other hand, hinder the closing process. It then takes a lot of effort to close the panel. Our gas springs with a strut provide the solution for neutralizing the influence of temperature.
